PROGRAMMABLE LOGIC CONTROLLER : "PLC"

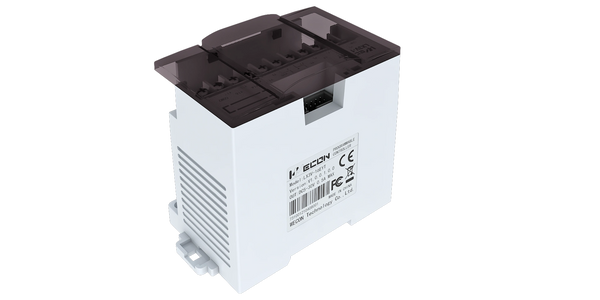

LX6V
- Supports EtherCAT and USB TYPE-C
- Supports IEC61131-3 LD programming mode, free-tag protocol, faster and more efficient communication
- 5MB large program capacity
- 512KB latched capacity
- 100KB register capacity
- 5MB free tag capacity
LX5V
LX5V Series
- 8-axis high speed pulse input and output
- The basic execution speed is 0.01us~0.03us
- 8 external X interrupts supported (both rising and falling)
- (High baud rate) 921600bps
- 100us high-speed timing interrupt
- Maximum 100 high-speed counting interrupts
LX5S
LX5S Series
- High speed pulse input and output
- The basic execution speed is 0.03us~0.08us
- 6 external X interrupts supported (both rising and falling)
- USB power supply supported
LX3V
LX3V Series
- High speed pulse input and output
- Support encoder (AB phase)
- Up to 200K pulse signal
- Power-down save
- Program encryption protection
Expansion module
- Multi-module connection
- AD module resolution : 16 bits
- WT module resolution : 24 bits
- DA module resolution : 12 bits
BD Board
LX3VP-ETH-BD
- Supports Modbus-TCP protocol
- Maximum 8 devices can be connected (no master-slave) to one LX3VP-EH-BD module.
- For Good real-time communication, strong correction ability and stable communication.
- Supports CANopen standard protocol DS301 V4.02.
- Supports 16 slave device when used as master.
- Free configuration by using CANopen network configuration software "CANopen Tool".
- It works as a master or a slave.
